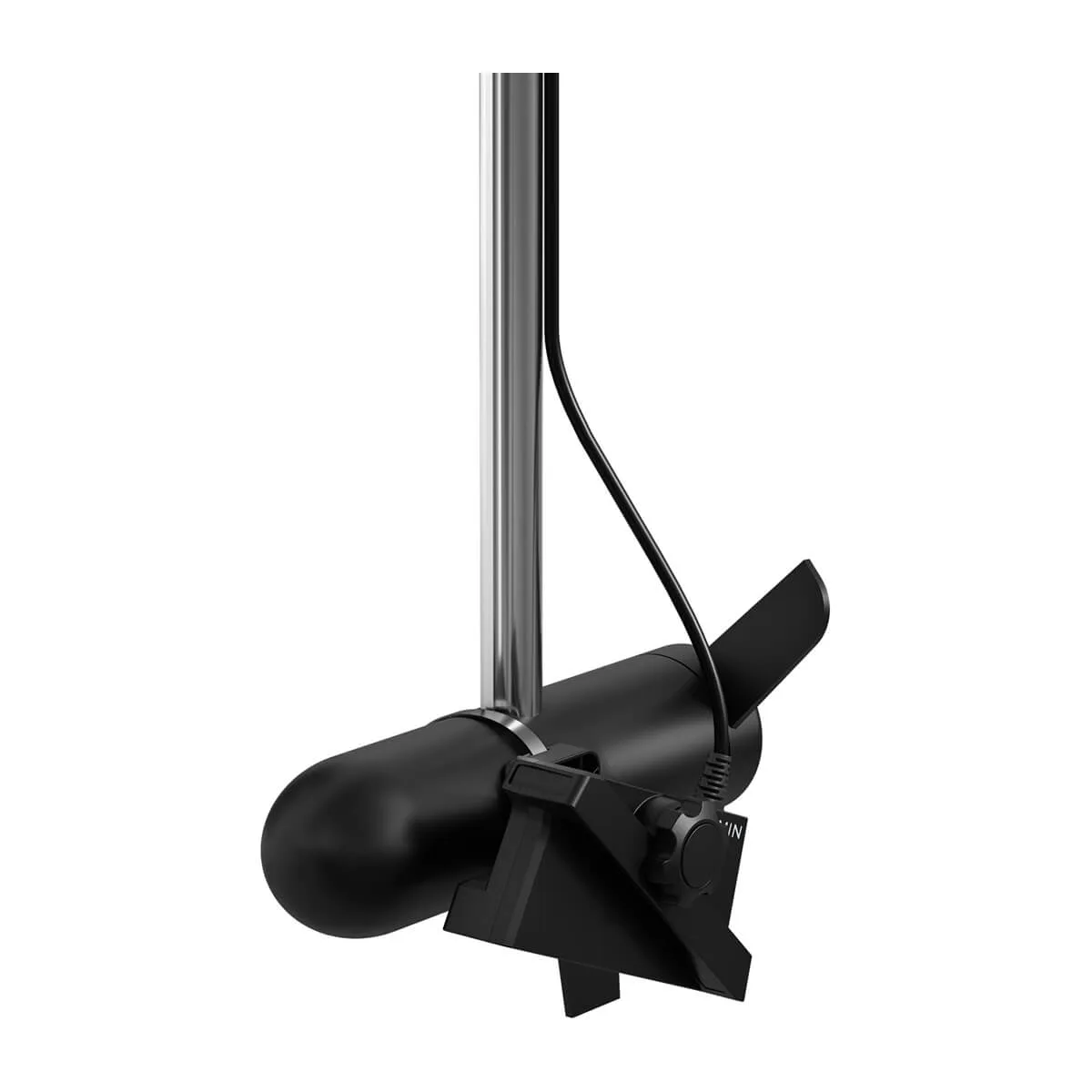

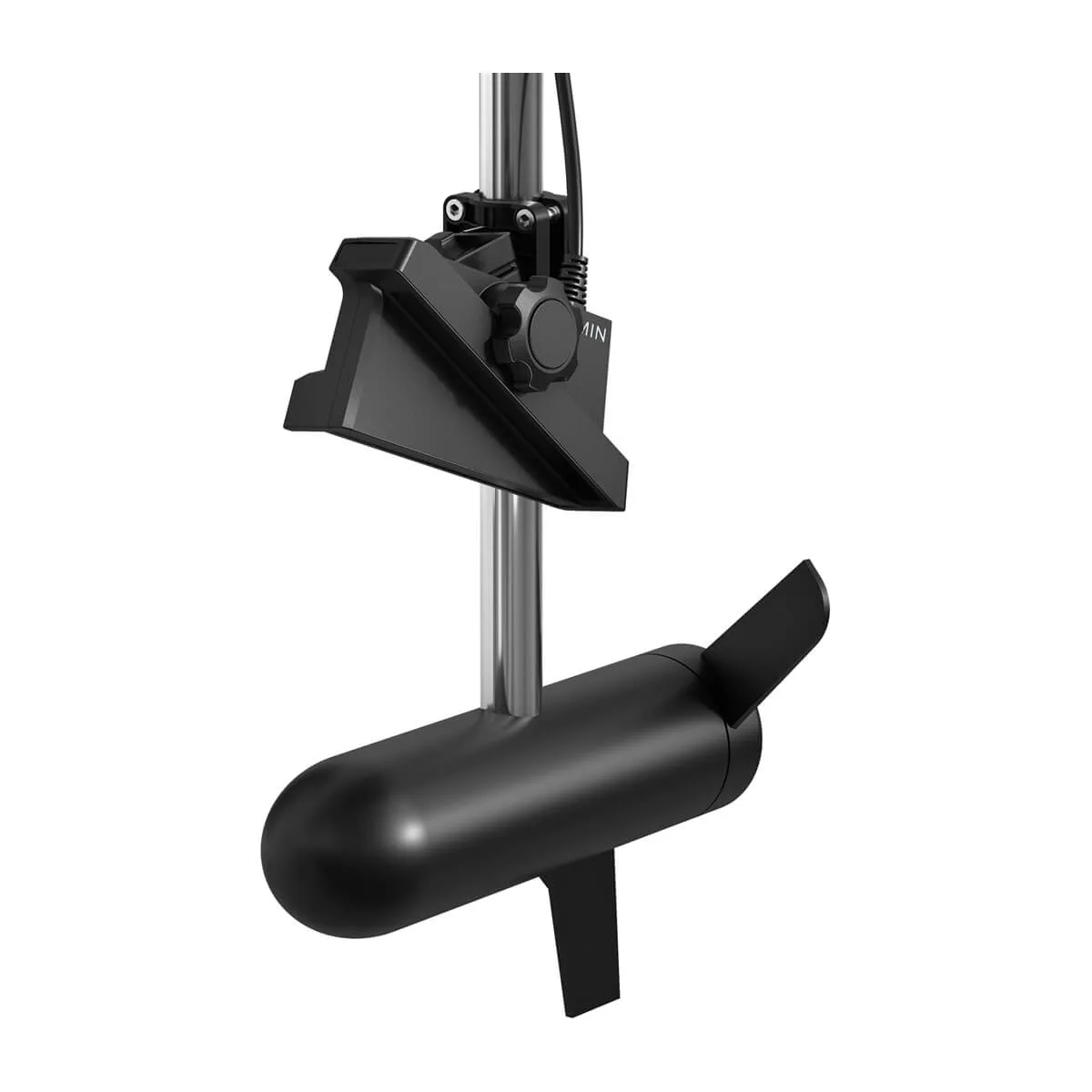

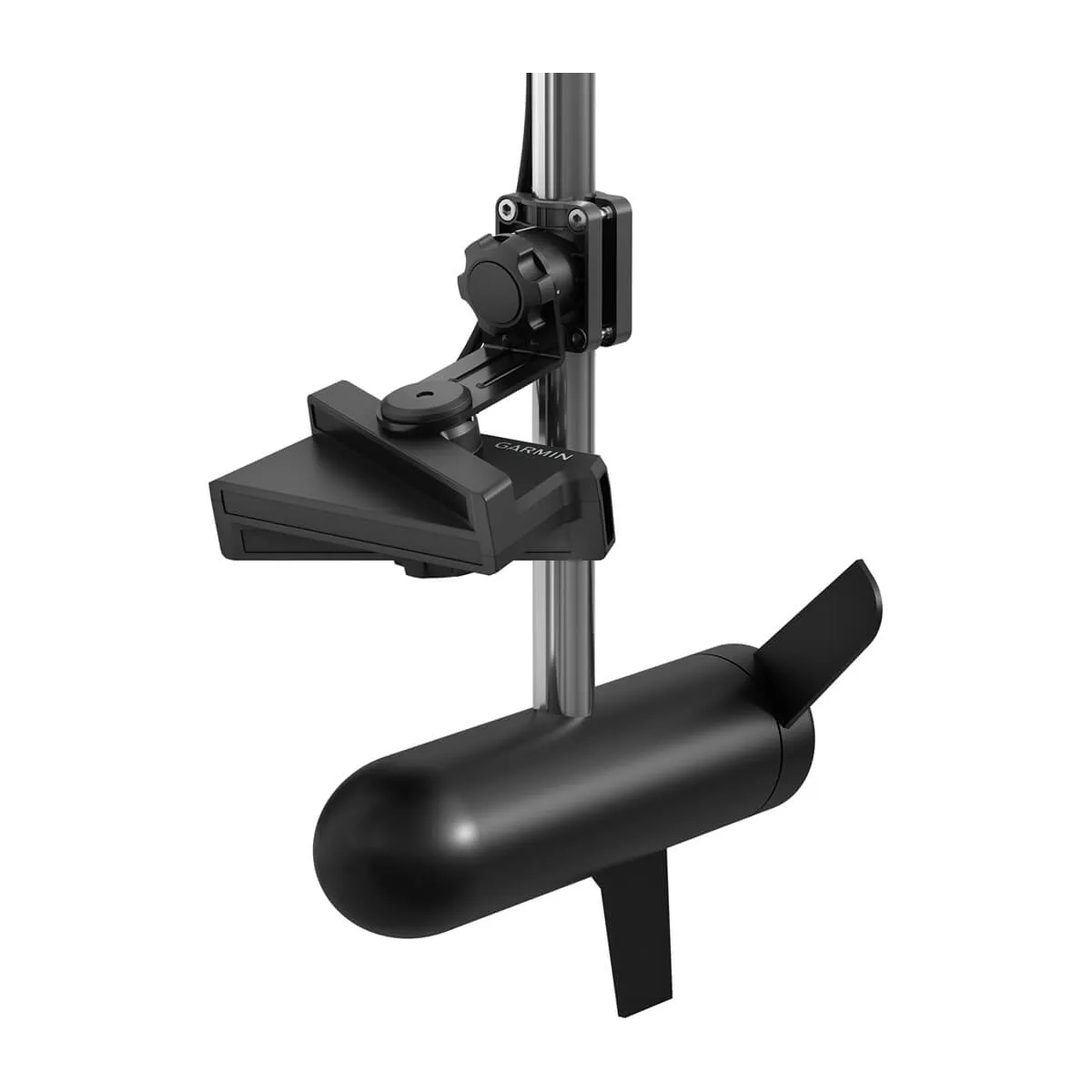

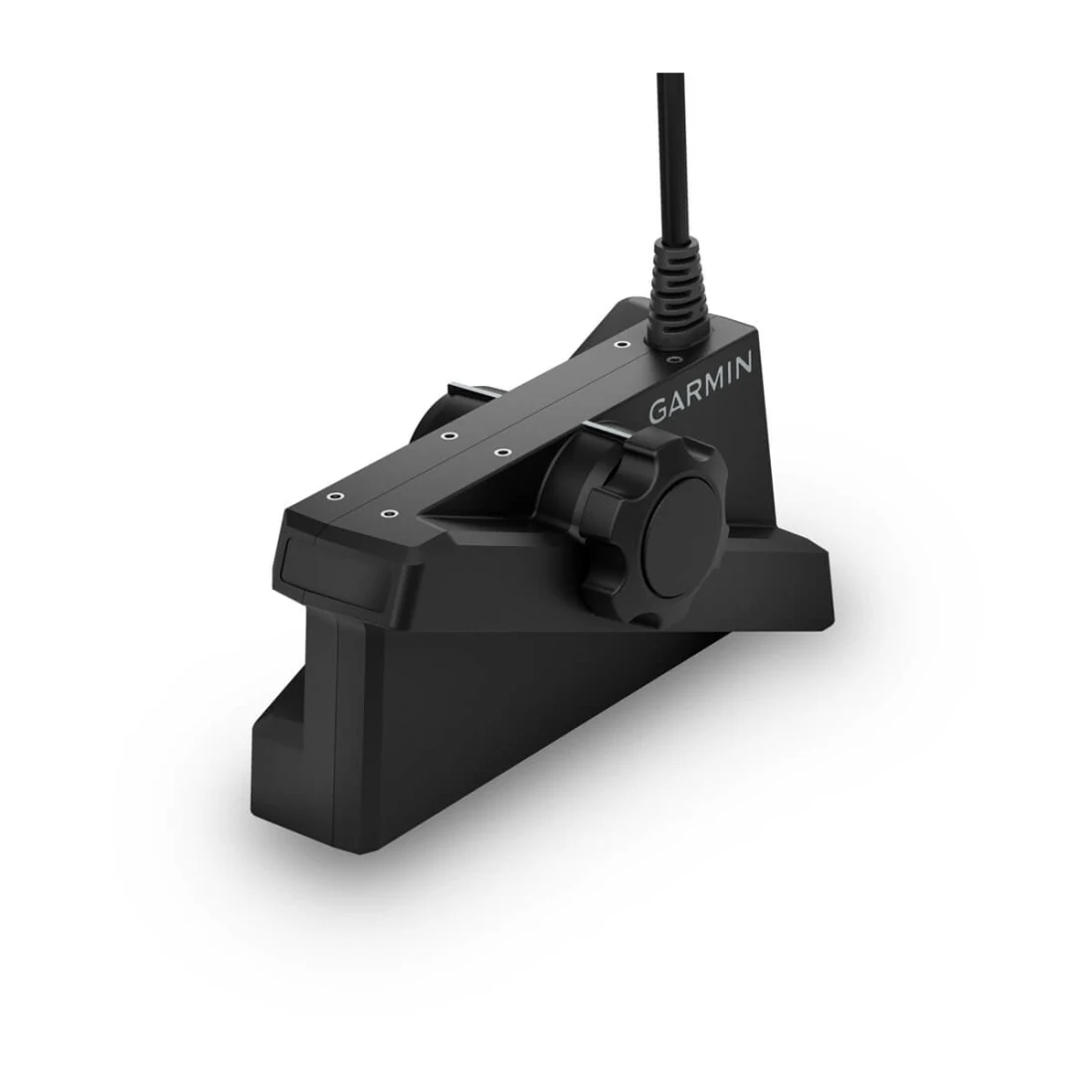

Garmin LiveScope™ XR LVS62 Transducer Only
You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.
- Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.
- Find fish circling your boat with clear views close around your hull.
- Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
- Get maximum contrast and clarity in your images with vivid color palettes.
- Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.
DIMENSION
LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
WEIGHT
LVS62 transducer with cable: 3.92 lbs (1.78 kg)
LVS62 transducer without cable: 2.66 lbs (1.21 kg)
WATERPROOF IPX7
TRANSDUCER BEAMWIDTH 20° x 135°
TRANSDUCER CABLE LENGTH 20 ft
TRANSDUCER NUMBER OF PINS 21
TEMPERATURE RANGE LVS62 Transducer: Operating: 0 C to 40 C
